Create Sub reports In Crystal Reports

In this example i am going to describe how to Create SubReports in Crystal Reports or Crystal Reports SubReport in ASP.NET Using C# And VB.NET. For this i have used two tables from MS SQL database named Employees and Projects.
Main Crystal Report is fetching data from both the tables and is grouped by Project Name

SubReport is used to display information about respective project and fetching data from Projects Table.

Schema for both the tables in shown below in images, create tables accordingly and add relevant data in it to start.

You can click on Images to Enlarge





To start , Create a new website in VS and right click on Solution Explorer and select Add new Item > Crystal Report. In the wizard window choose Using the Report Wizard radio button and Standard type in Choose an Expert section.



In next screen select Expand OLEDB(ADO) and Choose create new connection



Select Microsoft OLEDB Provider for SQL server and click next



In next screen check the Integrated security checkbox so that report doesn't ask for username and password  Enter you SQL Server name and Select DataBase from the dropdown ,



In next window expand and locate your tables you want to use and add them in right pane





In next screen select the fields you want to display in main report and add them in right pane , in my case i am showing fields from two tables in main report

 Now select the field which you want report to be grouped by ( in this example i m grouping report by Project Name)

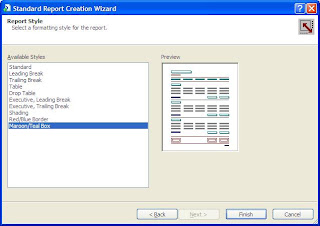

Select the report style you want and finish the wizard

 Now to add a subReport Right click in group header section (below Group #1 Name)

Choose Insert > SubReport , Place the ractangle where you want SubReport to be displayed. a wizard window will open prompltly



Enter report Name and click on report wizard buttonin next screen ,







Choose the table and fields you want to use in SubReport in next two screens and click on finish

Now Insert subReport window will open again , In this window click on Link Tab and select the field on which you want to filter SubReport or the ID of the record to show SubReport. I am using ProjectID in this example.

This is how design of report will look like



And this is how report preview will look



Save , build and rum the website.

Now if you don't want to show SubReport but want to put a hyperlink instead or want to create On-Demand SubReport then do these changes in the design of report

Right click on SubReport in Design View and select Format Object



In the window opened ,Go to SubReport tab, Change the SubReport name to text you want to show as hyperlink, Check the On-demand SubReport check box and click on ok

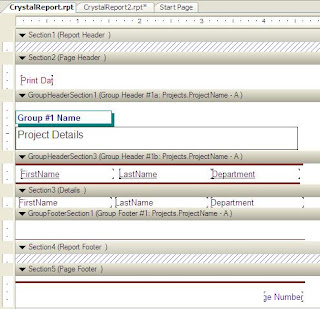

Now design of report will look like image below



On default.aspx page drag CrystalReportViewer from toolbox and assign CrystalReport we just created as source
Html source will go like this (AutoGenerated)

<CR:CrystalReportViewer ID="CrystalReportViewer1" runat="server"                           AutoDataBind="True" Height="1039px"                           ReportSourceID="CrystalReportSource1"                           Width="901px" />  <CR:CrystalReportSource ID="CrystalReportSource1" runat="server">  <Report FileName="CrystalReport.rpt">  </Report>  </CR:CrystalReportSource>

Save, build and run the solution , this is how Crystal Report SubReport will look like

Hope this helps.

--
